SNAP-ON ALUMINUM OR COPPER EXCHANGERS

These high thermal conductivity bands may be added to stove pipes, exhaust stacks, or other pipes and tubes to extract heat from the pipe and radiate the heat into the air. Heat is conducted into the band loops where it exchanges with the air.

Applications:

• RESIDENTIAL - Stovepipe radiators / home heating
• INDUSTRIAL - Reduce stack and pipe temperatures
• REFRIGERATION - Cool hot pipes, warm cold pipes

Made of highly conductive 28 gauge 1 ½ inches wide.

• Easy installation…wrap around the pipe, snap lock ends together for a tight fit.
• No tools required, install in minutes, no maintenance required.

How to Order

Measure the circumference of your pipe

• If you have a flexible tape measure (like those used for taking clothing measurements), you may use that.
• Or, you may use a piece of non-stretchy string or yarn, and measure the string with a tape measure or ruler.
• Do NOT measure a hot pipe! Wait until it is cool.
• Wrap your flexible tape measure around the pipe, and note the measurement at the point of overlap.

OR

Enter your measurement here

Circumference: inches centimeters

Material ** Select ** Aluminum Copper

* Copper has about twice the thermal conductivity as aluminum.

Common metals ranked by thermal conductivity

Rank	Metal	Thermal Conductivity [BTU/(hr/ft⋅/F)
1	Copper	223
2	Aluminum	118
3	Brass	64
4	Steel	17
5	Bronze	15

Available Sizes

Our heat exchangers are sold in sets of 6.

All standard American stove pipe sizes are available: 3", 3.6", 4", 5", 6", 7", and 8" diameter.

Bear in mind that these are the diameters of the pipes, but to measure your pipe, you will have to measure the circumference (the distance around). Please see our detailed instructions.

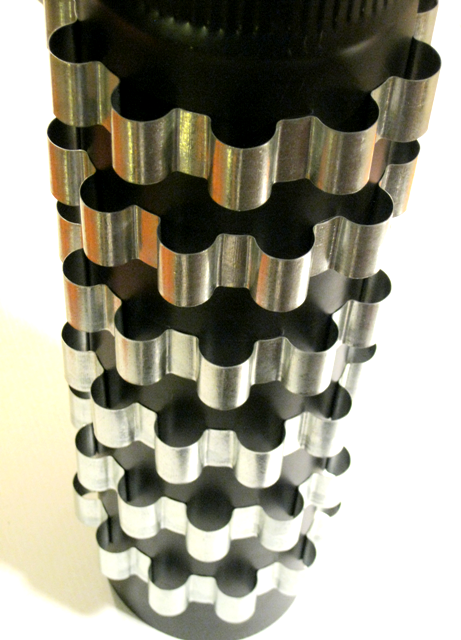

ALUMINUM

OR

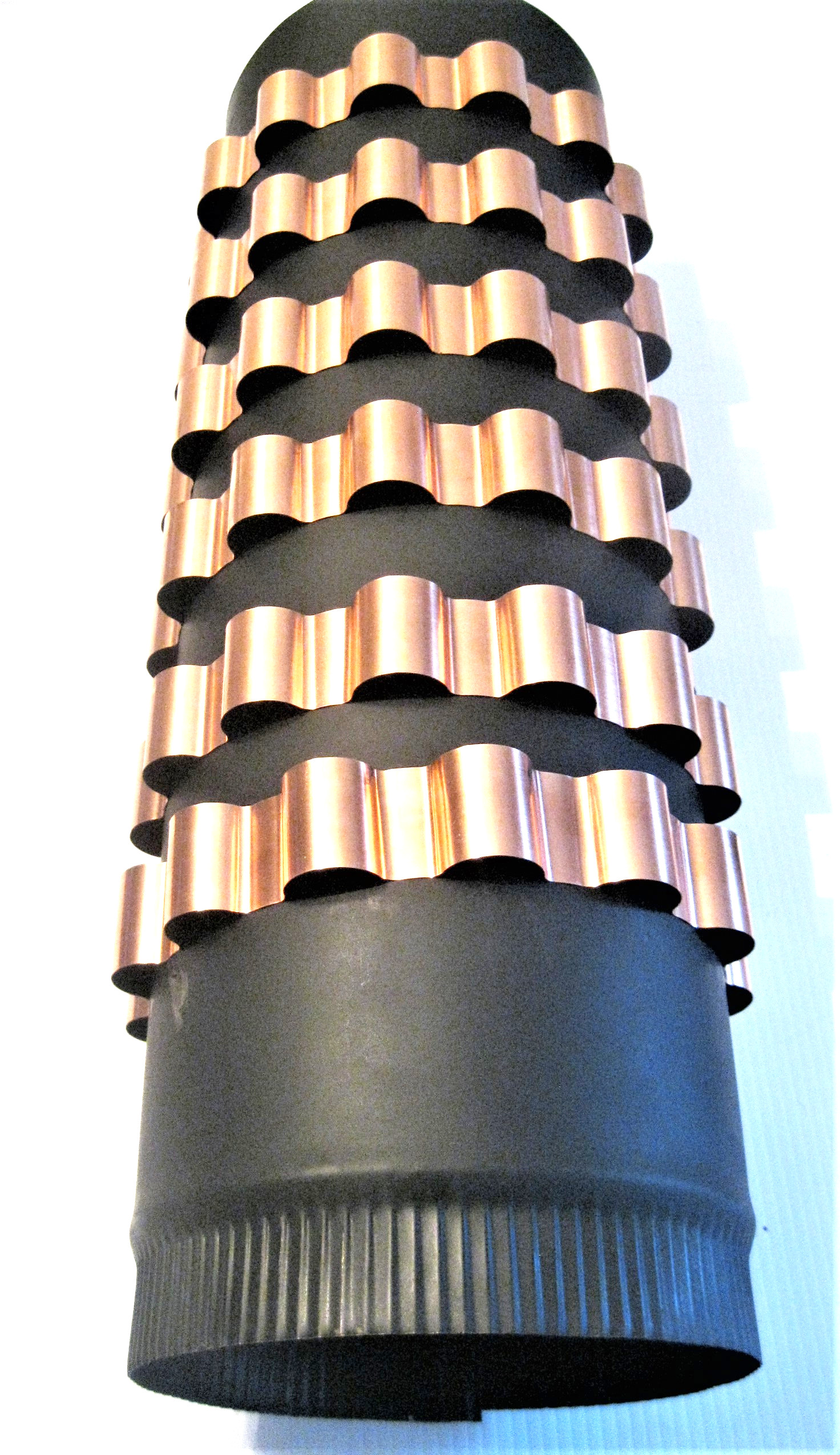

COPPER

How They Work

These heat exchangers are designed to be installed onto existing hot pipes to extract heat from the pipe. The pipe conducts heat into the heat exchangers and radiates the heat into the air. (Inversely, they may also be used to warm cold pipes.)

They work on the same principle as fins on a motorcycle engine. They conduct heat into a larger square area of exposed surface to allow more heat radiation. The bands make tight contact with your pipe and conduct the heat into the loops where convection through the loops allows more heat to be given off.

The bands conduct heat from the points of contact on the stovepipe to the loops in the band where the heat is released into the room. The band loops get as hot as the stovepipe...too hot to touch.

So for example, by installing a set of six 6 inch diameter bands, you create the equivalent of this 12 in. x 15 in. sheet of hot sheet metal, 500 - 700 degrees, radiating heat from both sides of the sheet into the room before it escapes out the chimney. That is like a small space heater itself...and it is FREE HEAT.

Installation

They attach quickly and easily to your pipe....no screws or tools needed. The ends lock into each other. It takes less than 5 minutes to attach all six heat exchangers.

CAUTION: WEAR GLOVES and SAFETY GLASSES during installation! Install when the pipe is cool.

• Wrap the radiator band around the pipe leaving the ends on the backside of the stovepipe (so they cannot be seen from the front).

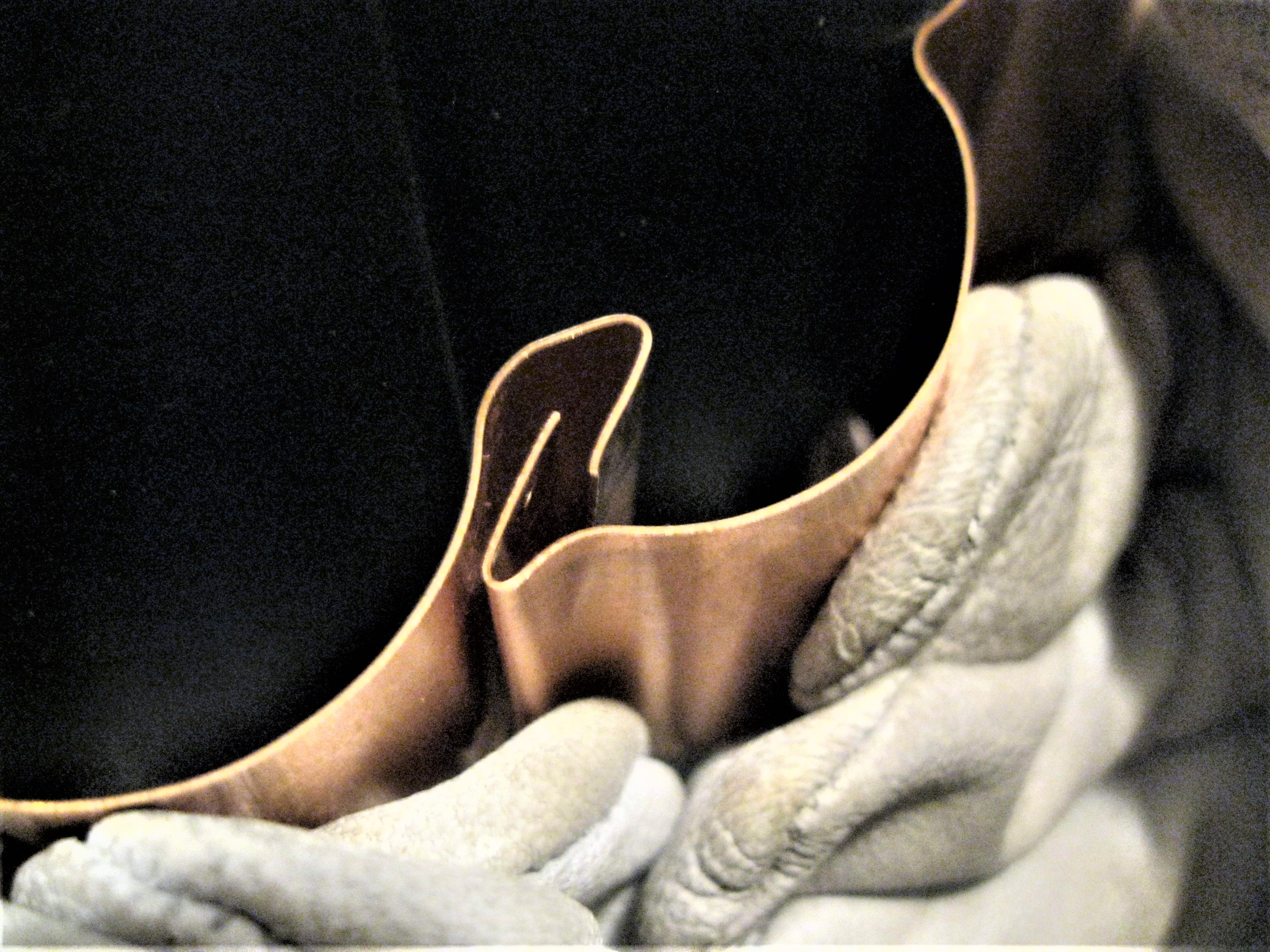

• The ends simply snap and lock into each other. The ends are designed to be stretched toward each other to snap and insure good tight contact with the pipe.
• Heat exchanger bands are 1.5 inches wide, and so a set of 6 will cover a length of 9 inches on the pipe. They may be placed anywhere between the stove and where the stovepipe exits the room.

  (Two sets shown in picture.)
